M Series

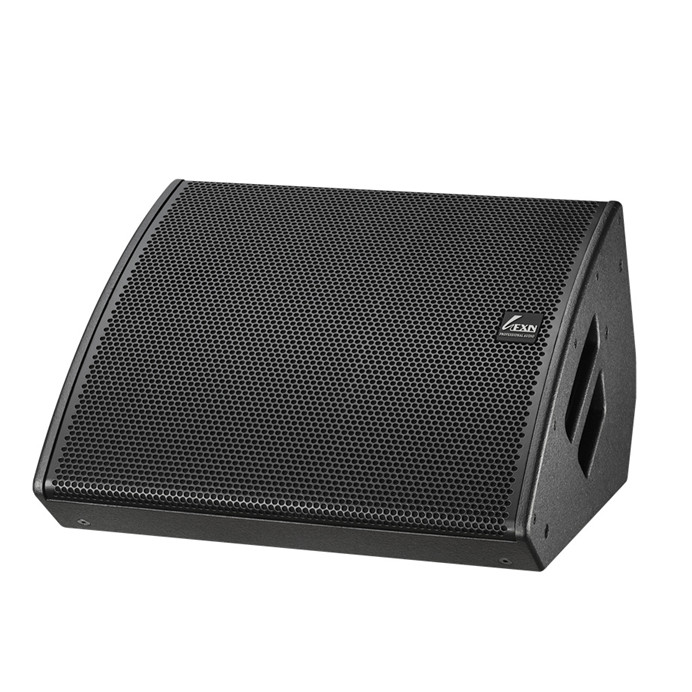

M15
Type:1×15"Two-way full range coaxial loudspeakers
Frequency range: 46HZ ～ 20kHZ,
Coverage (HxV): 90°×60°
Impedance: 8Ω
Sensitivity(1W at 1m):101dB
Max SPL(1m at SPL):134dB
Power AES / peak:500W/2000W
LF:1×15" Φ 75mm
HF:1×1.7" Φ 44mm
Dimension(W×H×D): 580 ×521×361mm
22.83x20.51x14.21in
Weight:24kg/52.8lb

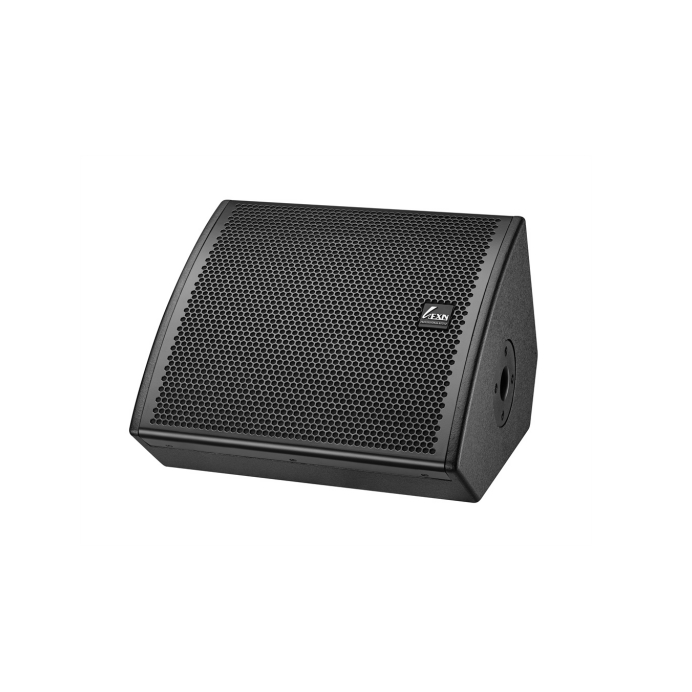

M12
Type：1x12" Two-way full range coaxial loudspeakers
Frequency range：50HZ ～ 20kHZ,
Coverage ( HxV ): 75°×50°
Impedance: 8Ω
Sensitivity(1W at 1m)：100dB
Max SPL(1m at SPL)：132dB
Power AES / peak：450W /1800W
LF：1×12" Φ75mm (Nd)
HF：1×3" Φ 75mm (Nd)
Dimension(W×H×D):458×486×309(mm）
18.03x19.13x12.16in
Weight：18kg/39.6lb

Product Detail

M10
Type：1x10" Two-way full range coaxial loudspeakers
Frequency range：50HZ ～ 20kHZ,
Coverage ( HxV ): 75°×50°
Impedance: 8Ω
Sensitivity(1W at 1m)：98dB
Max SPL(1m at SPL)：128dB
Power AES / peak：260W /1040W
LF ：1×10" Φ65mm
HF：1×1.75" Φ 44mm
Dimension(W×H×D):375x408x294（mm）
14.76x16.06x11.57in
Weight：16kg/35.2lb

M8
Type：1x8" Two-way full range coaxial loudspeakers
Frequency range：70HZ ～ 20kHZ,
Coverage ( HxV ): 75°×50°
Impedance: 8Ω
Sensitivity(1W at 1m)：96dB
Max SPL(1m at SPL)：124dB
Power AES / peak：230W /920W
LF：1×8" Φ50mm
HF：1×1.7" Φ 44mm
Dimension(W×H×D):308×340×241(mm）
12.12x13.38x9.48in
Weight：8kg/17.6lb

M6
Type：1×6"Two-way full range coaxial loudspeakers
Frequency range：80HZ ～ 20kHZ,
Coverage ( HxV ): 90°×60°
Impedance: 8Ω
Sensitivity(1W at 1m)：94dB
Max SPL(1m at SPL)：122dB
Power AES / peak：180W/720W
LF：1×6" Φ 50mm
HF：1×1.7" Φ 44mm
Dimension(W×H×D):256 ×290×190(mm）
10.07x11.41x7.48in
Weight：8kg/17.6lb
