MX series

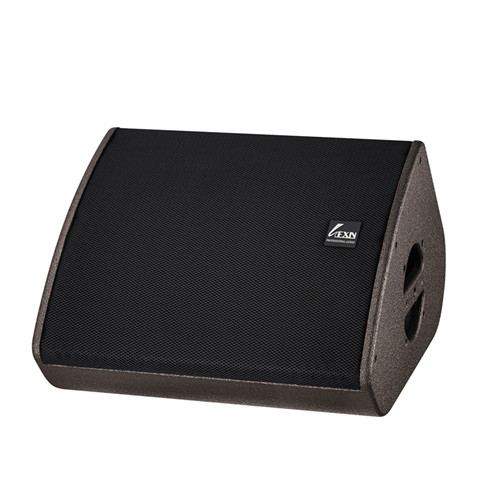

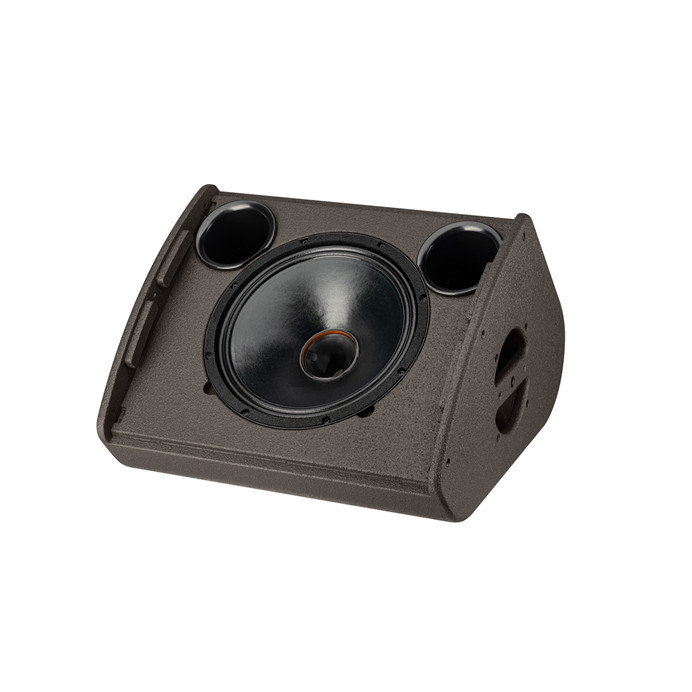

MX15
Type:1×15"Two-way full range coaxial loudspeakers
Frequency range: 55HZ ～ 20kHZ,
Coverage (HxV): 40°×60°
Impedance: 8Ω
Sensitivity(1W at 1m):101dB
Max SPL(1m at SPL):134dB
Power AES / peak:500W/2000W
LF:1×15" Φ 75mm
HF:1×3" Φ 75mm
Dimension(W×H×D): 496 ×341 ×500mm

Weight:21kg/46.2lb

Product Detail

MX12
Type:1×12"Two-way full range coaxial loudspeakers
Frequency range: 59HZ ～ 20kHZ,
Coverage (HxV): 40°×60°
Impedance: 8Ω
Sensitivity(1W at 1m):100dB
Max SPL(1m at SPL):132dB
Power AES / peak:400W/1600W
LF:1×15" Φ 75mm
HF:1×3" Φ 75mm
Dimension(W×H×D): 458×486×309mm

Weight:18kg/39.6lb
